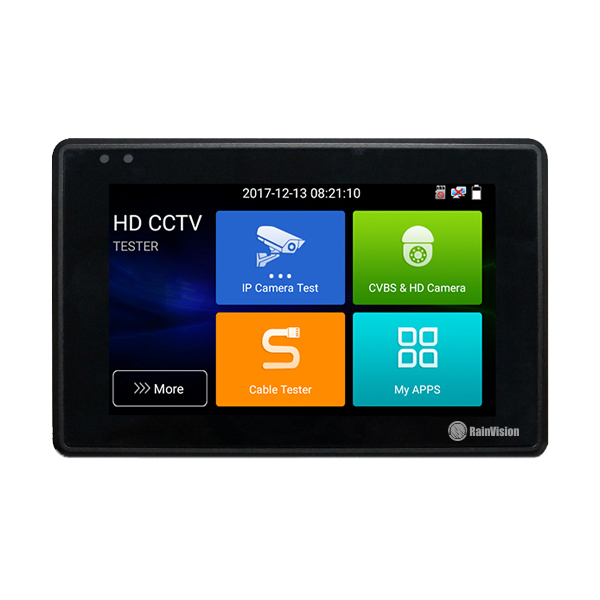

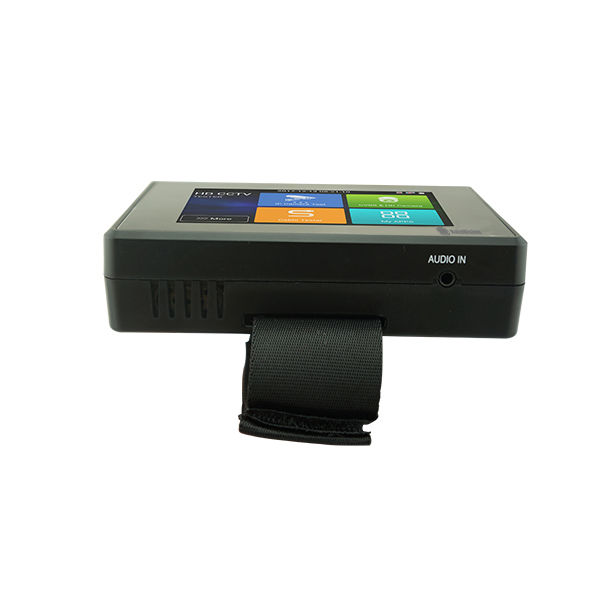

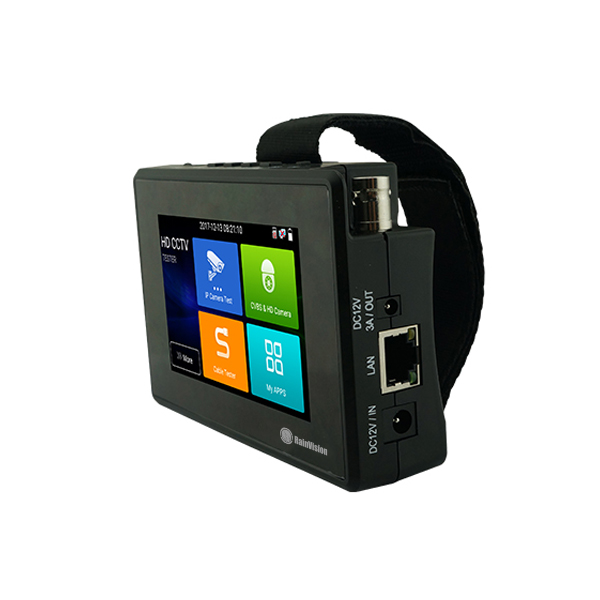

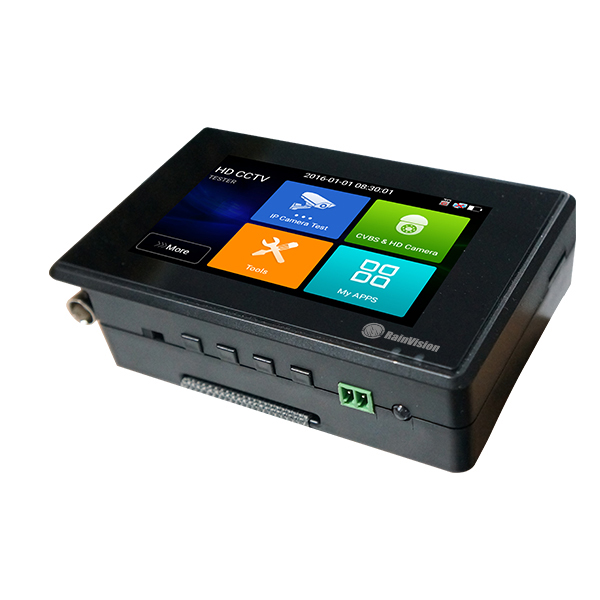

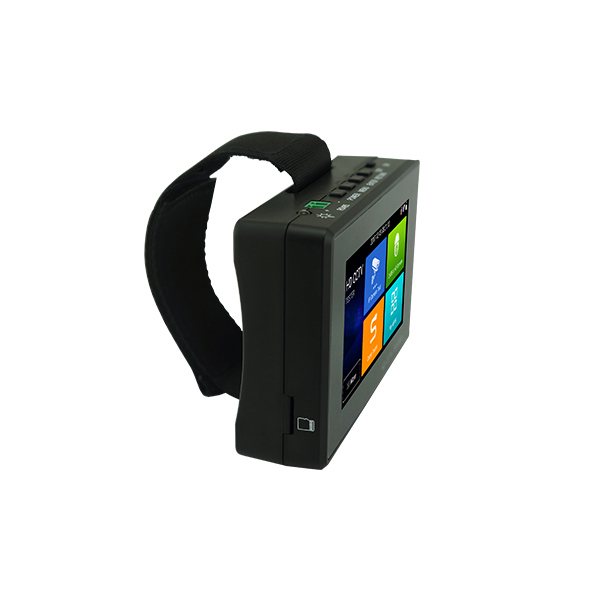

IPHDOC-4IN-4K Rainvision 4" Wrist Touch Screen Test Monitor w/ Built-in Wifi H.265 4K - HD-TVI / HD-CVI / AHD / Analog and IP

Specifications

• Display - 4" IPS Touch Screen
• Resolution - 800 x 480
• CVBS - 1 Channel BNC Input, NTSC / PAL (Auto Adapt), PTZ Control, RS485 Control, Baud 600-115200bps, Compatible with More than 30 Protocols such as PELCO-D/P, Samsung, Panasonic etc
• IP Camera Testing - 4K / H.265 / H.264, IP Discovery / Quick ONVIF / IPC Test / RTSP, Auto View the Video, Create Testing Report, Pressing One Key to Activate Rainvision Camera , Image Test, Can Modify the User Name, Password and IP Parameters
• Coaxial HD Testing - HD-TVI up to 8MP 15FPS @ 3840 x 2160, HD-CVI up to 4MP 25/30FPS @ 2560 x 1440, AHD up to 5MP 12.5/20FPS @ 2560 x 1944, UTC Control / OSD Menu
• Zoom Image - 4x Zoom to Enlarge Image, Screen Snapshot, Record, Save, View and Record and Playback
• Power Output - 12V/3A Power Output, Supply Temporarily Power to the Camera
• PoE Power Output - 48V PoE Power Output, Max power 24W
• Network Test - Link Monitor, Port Flashing, Ping Test
• Audio Test - 1 Channel Audio Signal Input, Test Whether Sound is Normal, 1 Channel Audio Signal to Connect Headphone
• Data Monitor - Captures and Analyzes the Command Data from Controlling Device and can also Send Hexadecimal
• Drop-down Menu - Select PoE Power Switch, IP setting, CVBS, LAN Info, etc. In Any Interface
• Power Requirement - DC12V 1A
• Battery - Built-in 7.4V Lithium Polymer Battery, 2400mAh
• Rechargeable - After Charging 4~5 Hours, Normal Working Time 7 Hours
• Operation Setting - OSD Menu, Select Your Desired Language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, etc.
• Auto Off - 1-30 Minutes
• Working Temperature - 14°F - 122°
• Working Humidity - 30% - 90%
• Dimension - 4.96” x 3.27” x 1.3”
• Weight - .7 lbs
