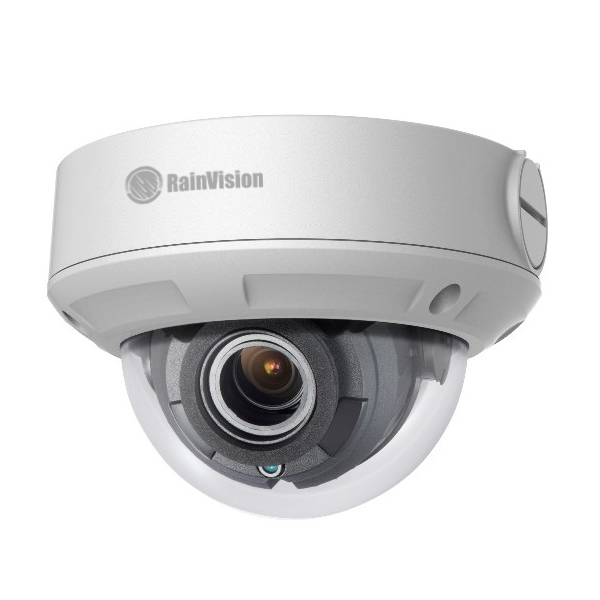

IPH2VD4L-21M-W Rainvision 2.8-12mm Motorized 20FPS @ 4MP Indoor/Outdoor IR WDR Day/Night Rugged Dome IP Security Camera 12VDC/PoE - White

Specifications

Camera

• Image Sensor - 1/3” Progressive Scan CMOS
• Min. Illumination - 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
• Shutter Speed - 1/3 s to 1/100,000s
• Lens - 2.8-12mm Motorized
• IR Range - Up to 100'
• Day & Night - IR cut filter
• DNR - 3D DNR
• Wide Dynamic Range - 120dB
• P&T rotation - Pan: 0° ~ 355°, Tilt: 0° ~ 70°, Rotation: 0° ~ 360°

Compression Standard

• Video Compression - Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG
• H.264 Type - Baseline Profile/Main Profile/High Profile
• H.265 Type - Main Profile
• Video Bit Rate - 32 Kbps ~ 8 Mbps


• Max. Resolution - 2560 x 1440
• Frame Rate - 50Hz: 20fps (2688 x 1520), 25fps(1920 x 1080), 25fps(1280 x 720) 60Hz: 20fps (2688 x 1520), 30fps (1920 x 1080), 30fps(1280 x 720)
• Image Setting - Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• ROI - 1 fixed region for main stream and sub-stream

Network

• Network Storage - Supports Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger - Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
• Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General - One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Standard - ONVIF (PROFILE S, PROFILE G), ISAPI

General

• Operating Conditions - -22°F – 140°F, Humidity 95% or less (non-condensing)
• Power Supply - 12 VDC ± 25%, PoE (802.3af)
• Power Consumption - 12 VDC: Max. 10W, PoE: Max. 12W
• Ingress Protection - IP67
• Impact Protection - IK10
• Dimensions - 5.6” × 3.9”
• Weight - 1.8lbs
• Warranty - 3 Years
• Package Contents - Camera, Installation CD / Manual / Template, Mounting Screws, Weathertight Connector
