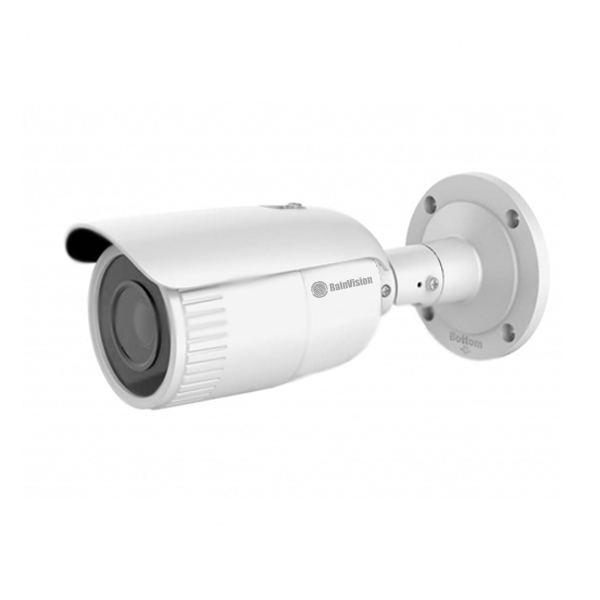

IPH2BL4L-21M-W Rainvision 2.8~12mm Motorized 20FPS @ 4MP Outdoor IR Day/Night Bullet IP Security Camera 12VDC/PoE

Click Image for Gallery

Specifications

Camera

Image Sensor - 1/3" Progressive Scan CMOS
Min. Illumination - Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed - 1/3s to 1/100,000s
Lens - 2.8-12mm Motorized
Day & Night - IR Cut Filter
Digital Noise Reduction - 3D DNR
WDR - 120dB
3-Axis Adjustment - Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Compression Standard


Max. Resolution - 2560 x 1440
Main Stream - 50Hz: 20fps ( 2560 x 1440 ), 25fps ( 2304 x 1296, 1920 x 1080, 1280 x 720) 60Hz: 20fps ( 2560 x 1440), 20fps (2304 x 1296, 1920 x 1080, 1280 x 720 )
Sub-stream - 50Hz: 25fps ( 640 x 480, 640 x 360, 320 x 240 ), 60Hz: 30fps ( 640 x 480, 640 x 360, 320 x 240 )
Image Setting - Saturation, Brightness, Contrast, Sharpness, AGC, White Balance Adjustable by Client Software or Web Browser
Day/Night Switch - Auto, Scheduled

Network

Network Storage - Micro SD/SDHC/SDXC Card (128GB), Local Storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger - Motion Detection, Video Tampering, Network Disconnected, IP Address Conflict, Illegal Login
Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General - One-key Reset, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark
API - ONVIF (Profile S, Profile G), ISAPI
Interface - 1 RJ45 10M / 100M Self Adaptive Ethernet Port
Video Output - 1Vp-p Composite Output (75 Ω/BNC)
Reset Button - Yes

General

Operating Conditions - -22 °F ~ 140 °F, Humidity 90% or less (non-condensing)
Power Requirement - 12VDC ± 20%, PoE (802.3af, Class 3)
Power Consumption - 12VDC Max. 11W PoE (802.3at, 36V-57V), 0.4A-0.2A, max. 12.9W
Ingress Protection - IP67, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions - Φ 4.1" x 9.6"
Weight - 2.3 lbs
Warranty - 3 Years
Package Contents - Camera, Installation CD/Manual/Template, Mounting Screws, Weathertight Connector
