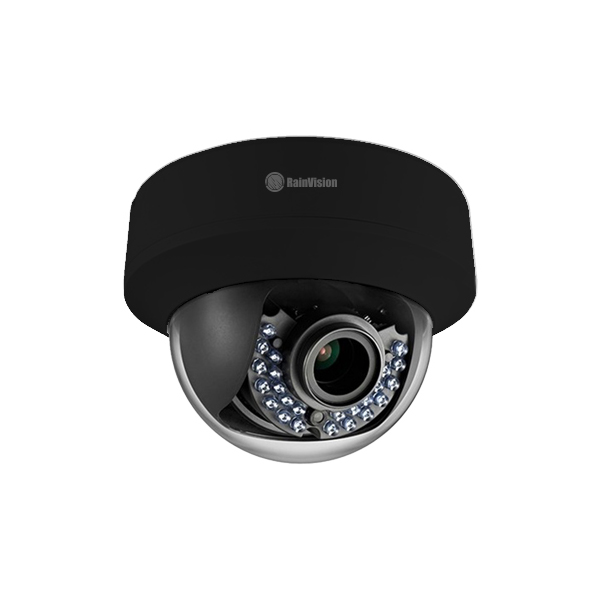

TVIPROID2-21M-B Rainvision 2.8~12mm Motorized 1080p Indoor IR Day/Night WDR Dome HD-TVI/Analog Security Camera 12VDC/24VAC - Black

Specifications

Camera

• Imaging Device - 1/3" Progressive Scan CMOS
• Signal System - PAL/NTSC
• Effective Pixels - 1920 (H) x 1080 (V)
• Min. Illumination - 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR, 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
• Shutter Time - 1/25(1/30)s to 1/50,000s
• Lens - 2.8-12mm motorized @ F1.4
• Angle of view - 103° - 32.1°
• Lens Mount - φ14
• Angle Adjustment - Pan: 0 - 355°, Tilt: 0 - 180°, Rotation: 0 - 355°
• Day & Night - ICR
• Synchronization - Internal synchronization
• WDR - 120dB
• Video Frame Rate - 25FPS @ 1080p PAL / 30FPS @ 1080p NTC
• HD Video Output - 1 1080p TVI output
• CVBS Output - 1Vp-p Composite Output(75Ω/BNC)
• S/N Ratio - More than 52dB

Menu

• Scene - Indoor, Outdoor, Indoor1, LOW-LIGHT
• Camera ID - On/off (15 characters, position programmable)
• AGC - Support
• D/N Mode - Color/BW/EXT
• White Balance - ATW, AWC-SET, Indoor, Outdoor, Manual
• Privacy Mask - On/Off, maximum 8 zones
• Motion Detection - On/Off, maximum 4 zones
• BLC - Support
• Anti-flicker - On/off
• Language - English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
• Functions - Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM

General

• Working Temperature - -4 °F – 113 °F
• Humidity - Humidity 90% or less (non-condensing)
• Power Supply - 12 VDC, 24 VAC
• Power Consumption - 12 VDC: Max. 4.5W ; 24 VAC: Max. 6.5W
• IR Range - Up to 100ft
• Communication - Up the coax(need UTC controller), Protocol: Pelco-C(Coaxitron)
• Dimensions - Φ 5.35” × 3. 98”
• Warranty - 3 Years
• Weight - 0.84 lb

TVIPROID2-21M-B Datasheet
