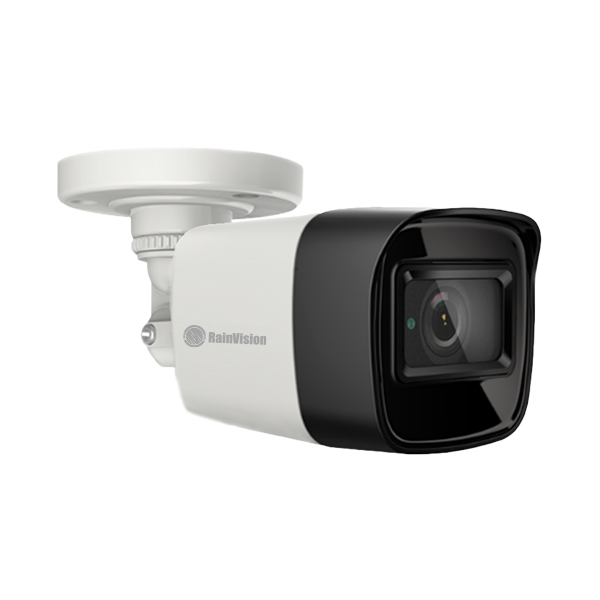

TVIHD8BL-3-W Rainvision 2.8mm 15FPS @ 8MP Outdoor IR Day/Night Bullet HD-TVI/HD-CVI/AHD/Analog Security Camera 12VDC

Specifications

Camera

• Imaging Sensor - 8.29MP CMOS Image Sensor
• Min. Illumination - Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time - PAL: 1/12.5s to 1/50,000s, NTSC: 1/15s to 1/50,000s
• Lens - 2.8mm Fixed Lens
• Day & Night - IR with Cut Filter
• IR Range - Up to 100'
• DNR - Supported
• DWDR - 105 dB
• 3-axis Angle Adjustment - Pan: 0°~360°, Tilt: 0°~180°, Rotate: 0°~360°
• Horizontal Field of View - 102.2°~79°
• Synchronization - Internal Synchronization
• Communication - Up the Coax, HD-TVI Output


• Max Resolution - 3840 x 2160
• Frame Rate - HD-TVI: 15FPS @ 8MP, 12.5FPS @ 8MP, 25FPS @ 5MP, 30FPS @ 4MP, 25FPS @ 4MP , 25FPS @ 4MP, 30FPS @ 2MP, 25FPS @ 2MP, HD-CVI: 15FPS @ 8MP, 12.5FPS @ 8MP, AHD: 20FPS @ 5MP, CVBS: 960H
• Image Setting - Brightness, Sharpness, DNR, Mirror, Smart IR
• BLC - Support
• AGC - Support
• D/N Mode - Auto / Color / Black and White
• White Balance - Auto / Manual

General

• Operating Temperature - -40°F ~ 140°F, Humidity: 90% or Less Non‐condensation
• Power Requirement- 12VDC ±25%
• Power Consumption - Max 5.3W
• Ingress Protection - IP67
• Dimensions - 2.28” x 2.40” x 6.42”
• Weight - .76 lbs
• Warranty - 3 Years
• Package Contents - Camera, Installation Manual/Template, Installation Accessories

TVIHD8BL-3-W Datasheet
