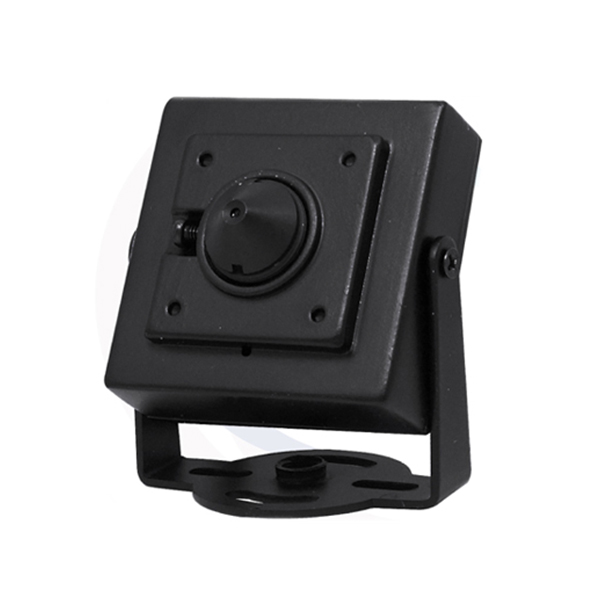

TVIMINI2-4CN Rainvision 3.7mm 1080p Indoor Day/Night Miniature HD-TVI/AHD/Analog Security Camera 12VDC

Specifications

Camera

• Image Sensor - 1/2.7" Aptina 2.4 Megapiel Sensor
• Effective Pixels - 1920(H) x 1080(V)
• Electronic Shutter - PAL:1/50s~1/100,000s, NTSC:1/60s~1/100,000s
• Minimum Illumination - 0.01 Lux @ F1.2 ((0Lux IR on)
• Lens - 3.7mm
• View Angle - Anguliar Field:93°
• S/N Ratio - ≥45dB(Max 70 dB)
• Video Output - 1.0Vp-p
• White Balance - Auto adaptive(Range 2200～10000K)
• WDR - N/A
• AGC - Automatic / manual
• BLC - Automatic / manual
• DNR - 2D


• Compatibility - TVI / AHD / Analog
• Encode Mode - CBR
• Image Quality - Not adjustable under CBR
• Resolution - 1080p (1920 x 1080)
• Video Frame Rate - PAL: 25fps @ 1080p, NTSC: 30fps @ 1080p
• Image Setting - Brightness, Contrast, Sharpness, DNR, Color gain, exposure, mode etc.

Functions

• Remote Monitoring - By monitoring the video recorder
• Day & Night - Auto / Color / BW / EXT
• OSD Menu - Yes

General

• Power Supply - DC12V±10%
• Power Consumption - 300mA
• Working Environment - -22°F ~ 140°F
• Dimensions - 1.73" x 1.26" x 2.17"
• Weight - 2.2 lbs
• Warranty - 1 Year

TVIMINI2-4CN Specifications PDF
