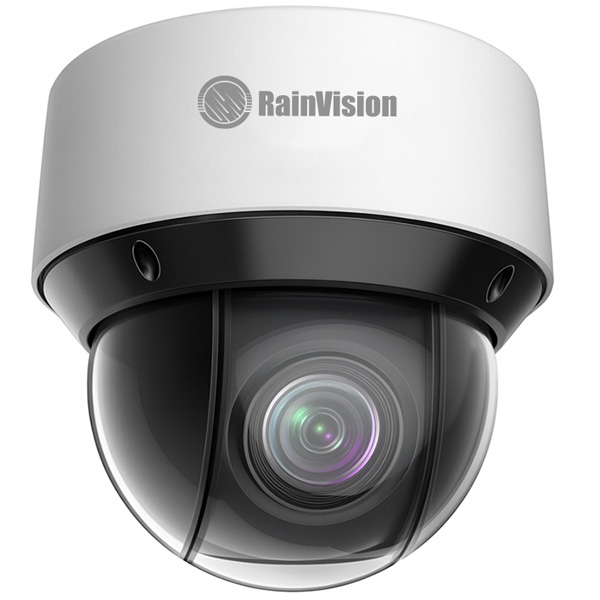

IPHMPTZ4-25X-IR Rainvision 4.8~120mm 25x Optical Zoom 30FPS @ 4MP Outdoor IR Day/Night PTZ IP Security Camera 12VDC/PoE - White

Specifications

Camera

• Image Sensor - 1/2.8" progressive scan CMOS
• Max. Resolution - 2560 x 1440
• Main Stream - 60Hz: 30fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
• Video Compression - Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG
• Min. Illumination - Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• White Balance - Auto/ Manual/ ATW (Auto Tracing White Balance) / Indoor / Outdoor / Fluorescent lamp / Sodium lamp
• AGC - Auto / Manual
• Shutter Speed - 1/1 to 1/30,000s
• Day & Night - IR Cut Filter
• Digital Zoom - 16 x
• Privacy Mask - 8 programmable privacy masks
• Focus Mode - Auto / Semi-automatic / Manual
• 3D DNR - Support
• BLC - Support
• DWDR - Support

Lens

• Focal Length - 4.8 to 120mm, 25x Optical
• Zoom Speed - Approx. 3.2s (optical lens, wide-tele)
• Field of View - 57.6° to 2.5° (wide-tele)
• Working Distance - 10 to 1500mm (wide-tele)
• Aperture Range - F1.6 to F3.5

IR

• IR Distance - Up to 150 ft
• IR Intensity - Automatically adjusted, depending on the zoom ratio

Pan/Tilt/Zoom

• Proportional Zoom - Rotation speed can be adjusted automatically according to zoom multiples
• Number of preset - 300
• Patrol - 8 patrols, up to 32 presets for each patrol
• Power-off Memory - Support
• Park Action - Pattern Scan / Pan Scan / Tilt Scan / Frame Scan / Panorama Scan / Random Scan
• PTZ Position Display - Support
• Scheduled Task - Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan /Frame scan / Panorama scan/Dome reboot / Self-test action / Alarm output

Network

• Protocols - IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
• Simultaneous Live View - Up to 6 channels
• Security Measures - User authentication (ID and PW), Host authentication (MAC address); IP address filtering

System Integration

• Alarm Input - 2-ch alarm input
• Alarm Output - 2-ch alarm output
• Audio Input - 1-ch audio input
• Audio Output - 1-ch audio output
• Memory Card - Built-in memory card slot, supporting Micro SD/SDHC/SDXC, up to 128GB
• Client - Rainvision CMS

General

• Power - DC 12V and PoE (802.3at), Max.: 18W
• Working Temperature - Outdoor: -22°F to 149°F
• Working Humidity - 95% or less
• Protection Level - IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimensions - 6.67" x 6.34"
• Weight - Approx. 5.40 lbs
• Warranty - 1 Year
• Package Contents - Camera, Installation CD/Manual/Template, Installation Accessories

IPHMPTZ4-25X-IR Datasheet
