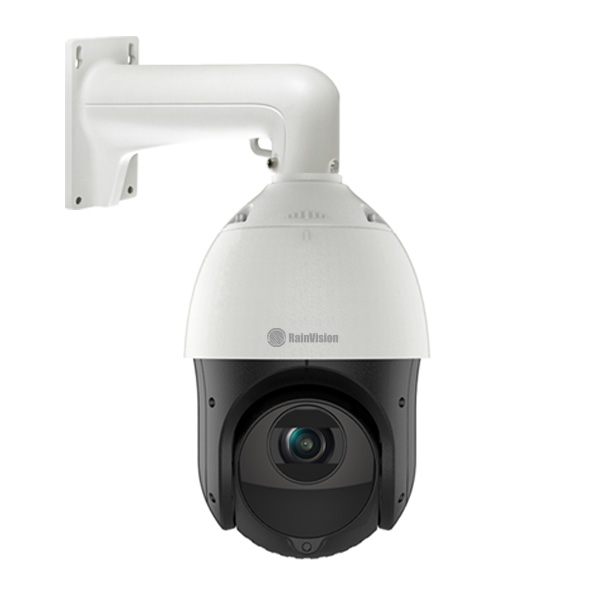

IPH2PTZ2-25X-IR Rainvision 4.8-120mm 25x Optical Zoom 30FPS @ 1080p Outdoor IR Day/Night DWDR PTZ IP Security Camera 12VDC/PoE

Specifications

Camera

• Image Sensor - 1/2.8" Progressive Scan CMOS
• Camera Resolution - 1920 x 1080
• Day/Night Function - IR Cut Filter
• Image Enhancement - HLC / BLC / 3D DNR
• Shutter Time - 1/1s to 1/10,000s
• IR Distance - Up to 300 feet
• Min. Illumination - Color: 0.005 lux, B/W : 0.001 lux, 0 lux with IR
• AGC - Auto / Manual
• DWDR - Yes

Lens

• Focal Length - 4.8mm~120mm 25x Optical zoom
• Digital Zoom - 16X
• Zoom Speed - Approximately 1s (Optical Wide-Tele)
• Angle of View - Horizontal FOV: 57.6 ~ 2.5 degree (Wide-Tele), Vertical FOV: 34.4 ~ 1.4 (Wide-Tele), Diagonal FOV: 64.5 ~ 2.9 (Wide-Tele)
• Min. Working Distance - 10 ~1500mm (Wide-Tele)
• Aperture Range - F1.6 ~ F3.5
• Focus Control - Auto / Semi-automatic / Manual

Pan and Tilt

• Pan / Tilt range - Pan: 360° endless; Tilt: -10°~90°(Auto Flip)
• Pan / Tilt speed - Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 160°/s Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s
• Number of preset - 256
• Patrol - 8 patrols, up to 32 presets per patrol
• Park action - Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

Video

• Frame Rate - Main Stream 60Hz: 30fps @ 1920x1080, 30fps @ 1280x960, 30fps @ 1280x720
• Compression - H.265+ / H.265 / H.264+ / H.264 MJPEG

Network

• Protocol - IPv4 / IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE

Interface

• Audio Interface - 1 channel audio input and 1 channel audio output
• Network Interface - 1 RJ45 10M/100M Ethernet interface

General

• Operating Conditions - -22°F ~ 149°F Humidity 90% or Less
• Power Requirement - 12VDC / PoE
• Power Consumption - Max. 18W
• Ingress Protection - IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
• Dimensions - Φ6.48" x 11.42"
• Weight - 4.41 lb
• Warranty - 1 Year
• Package Contents - PTZ Camera, Wall Mount Bracket, Installation Manual & CD, Installation Accessories
